Smart Home Automation Hub

Konceptux
HA Box

A fully configured Home Assistant server — Raspberry Pi 5, Zigbee coordinator, and a Home Assistant dashboard — configured for your compatible devices.

CAD499
Raspberry Pi 5 4GB · 64GB microSD · Zigbee · Home Assistant
Raspberry Pi 5 4GB — BCM2712 @ 2.4GHz
64GB microSD — Core storage
Sonoff Zigbee 3.0 dongle + USB extension
Active cooling — integrated fan
HA OS + custom dashboard pre-configured
Konceptux enclosure — branded lid
Initial configuration included
Request This Configuration View Full Specs

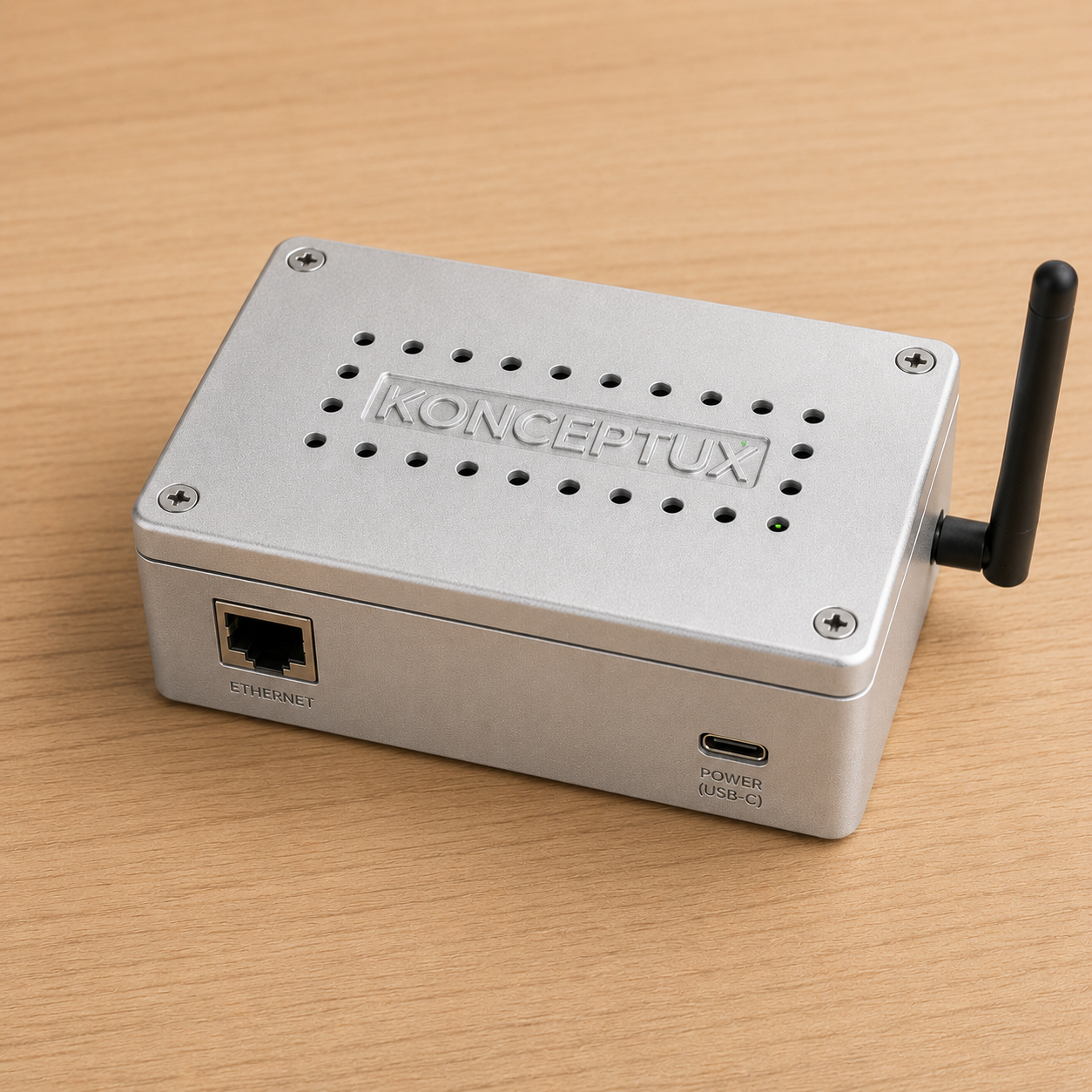

Konceptux HA Box — 3D-printed enclosure with metallic-painted finish and Zigbee antenna
Local-first Raspberry Pi 5 Zigbee 3.0 Core + Premium
Watch It In Action

See the HA Box in Action

A product demonstration will be added when the video is ready.

Video preview Video coming soon
Product Gallery

Every Angle Engineered

Konceptux HA Box — front view
Front view Front View

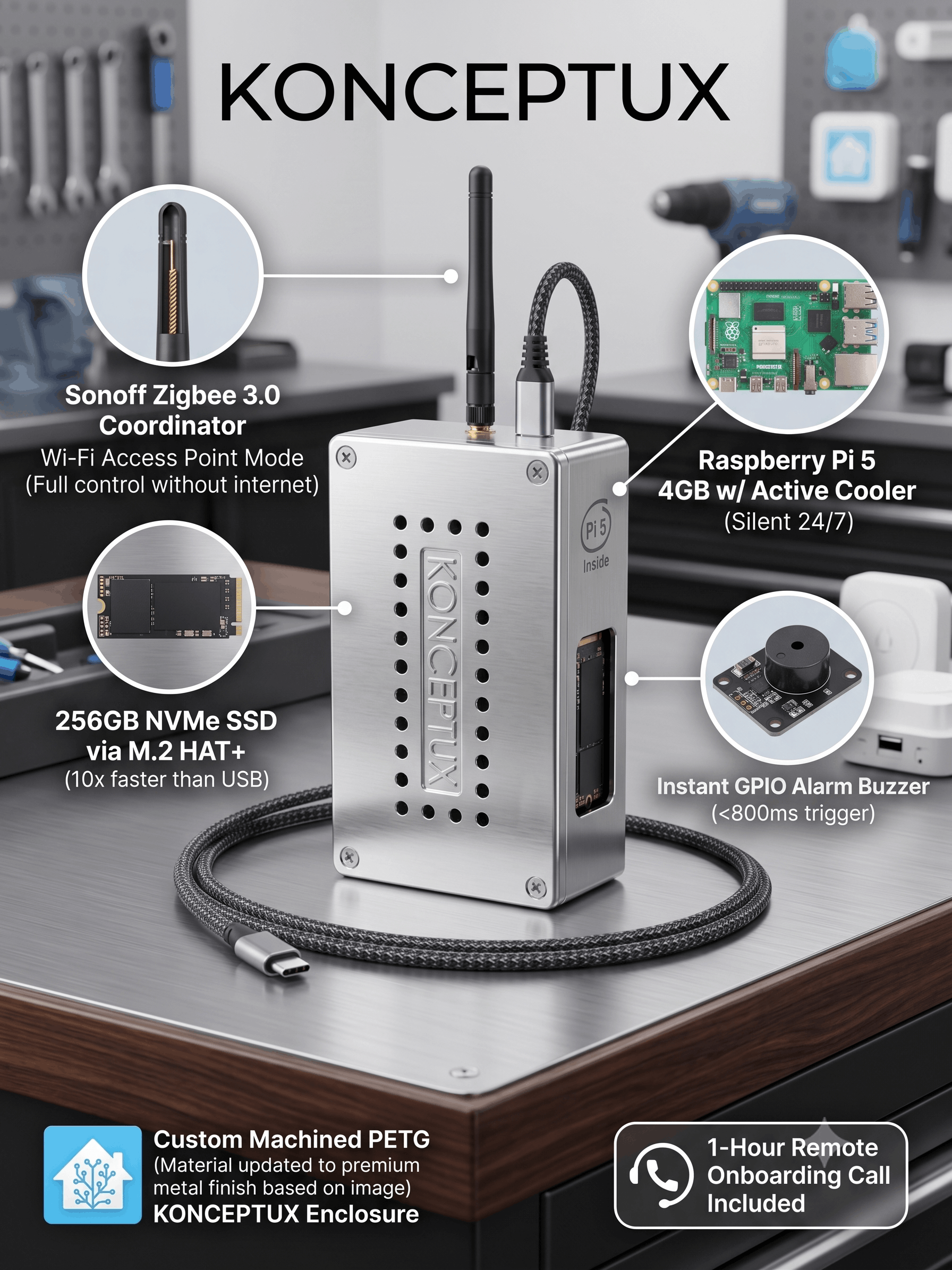

Inside the build — components Inside the Build
Dashboard preview Dashboard
Landlord and Airbnb bundle Landlord Bundle
What's Inside

Every Component
Selected with Intent

A carefully selected platform, configured to simplify compatible smart-home devices and local automation.

🧠

Raspberry Pi 5

BCM2712 quad-core at 2.4GHz with PCIe 2.0. Runs Home Assistant and compatible integrations; capacity depends on workload.

4GB RAM
💾

Storage Options

Core uses a 64GB microSD; Premium includes a 256GB NVMe SSD connected via M.2 HAT+.

64GB / 256GB
📡

Zigbee 3.0 Coordinator

Sonoff Zigbee 3.0 USB Dongle Plus — a Zigbee coordinator for compatible devices. An extension may be used to improve placement.

EFR32MG21
🌀

Active Cooling

Integrated active cooling using a 40 × 40 × 10 mm fan; thermal performance is verified during product testing.

40mm fan
🏠

Home Assistant OS

Home Assistant pre-installed with an initial configuration. Additional integrations and services depend on project scope.

HA OS
📦

Konceptux Enclosure

Custom PETG 3D-printed box with a metallic-painted finish, embossed Konceptux logo on the lid, ventilated top panel, front port access. Built to look like a product.

Branded · PETG
What You Can Do

Smart Automation.
Built Around Your Needs.

From everyday convenience to property monitoring, HA Box brings compatible devices and automations together in one place.

Smart Home Control

Manage compatible lights, switches and sensors from one Home Assistant dashboard. Build routines around schedules, motion and other supported events.

EXAMPLES · Lighting schedules · Motion-triggered scenes · Device status

Property Monitoring

Keep an eye on temperature, humidity, water leaks and doors using compatible optional sensors. Configure alerts and dashboards for the conditions that matter to you.

EXAMPLES · Leak alerts · Temperature trends · Door status

Rental Property Management

Help monitor and automate compatible systems at a rental property. Konceptux can scope dashboards, notifications and access controls around the property's needs.

EXAMPLES · Vacant-unit monitoring · Maintenance notifications · Remote access options

Optional sensors, remote-access services and advanced configurations are not included unless specified in your quotation. Alerts and remote features may require an Internet connection.

Compare Core & Premium →
Choose Your Tier

Two Configurations.
One Platform.

Both configurations use the same Raspberry Pi 5 4GB platform. Premium upgrades storage to a 256GB NVMe SSD.

HA Box Core
$499
Raspberry Pi 5 4GB · 64GB microSD
  • Raspberry Pi 5 4GB
  • 64GB microSD storage
  • Zigbee USB coordinator
  • Home Assistant pre-installed
  • 40 × 40 × 10 mm fan and buzzer
  • Konceptux enclosure and power supply
  • Initial configuration
Buy HA Box Core
CAD · Taxes extra · See store for final price and availability
HA Box Premium · SSD Upgrade
$649
Raspberry Pi 5 4GB · 256GB NVMe
  • Everything in Core
  • 256GB NVMe SSD replaces microSD
  • Raspberry Pi 5 M.2 HAT+ (PCIe)
  • More capacity for history and integrations
  • Zigbee USB coordinator
  • Home Assistant pre-installed
  • Initial configuration
Buy HA Box Premium
CAD · Taxes extra · See store for final price and availability
Technical Specs

Built for
24/7 Operation

Designed as a locally managed automation hub; configuration, workload and connected devices affect operation.

HA OS Native MQTT Broker Zigbee2MQTT InfluxDB Grafana No Cloud
ProcessorRaspberry Pi 5 — BCM2712 quad-core Cortex-A76 @ 2.4GHz
RAM4GB RAM LPDDR4X-4267
Storage64GB / 256GB M.2 NVMe (PCIe 2.0) via M.2 HAT+
NetworkGigabit Ethernet · 802.11ac Wi-Fi · Bluetooth 5.0
ZigbeeSonoff USB Dongle Plus · EFR32MG21 · Zigbee 3.0
Power5V/5A USB-C — Official Pi 5 27W PSU
Cooling40 × 40 × 10 mm fan
EnclosureCustom PETG, metallic-painted finish · 105×75×52mm · Konceptux logo embossed
SoftwareHome Assistant OS; optional integrations quoted separately
AutomationCompatible local automations can operate without internet
Boot TimeVaries by configuration and installed integrations
UpdatesOne-click OTA from HA Supervisor dashboard
Documentation

Download the
Paperwork

Everything needed to spec, install, and service this product — no signup required.

IN-HABOX-1000 · 8 PAGES

Installation Instructions

Safety warnings, mounting, wiring, network configuration, dashboard access, servicing, calibration, and full specs & dimensions.

Download PDF (IN) →
PDF · ~18 KB
PS-HABOX-1000 · 1 PAGE

Product Submittal

Product description, full specifications table, wiring/terminal reference, ordering information, and dimensions — for engineer or specifier approval.

Download PDF (PS) →
PDF · ~5 KB
PB-HABOX-1000 · 1 PAGE

Product Brochure

Marketing highlights, feature bullets, specs at a glance, and an enclosure callout diagram — built for sharing.

Download PDF (PB) →
PDF · ~5 KB

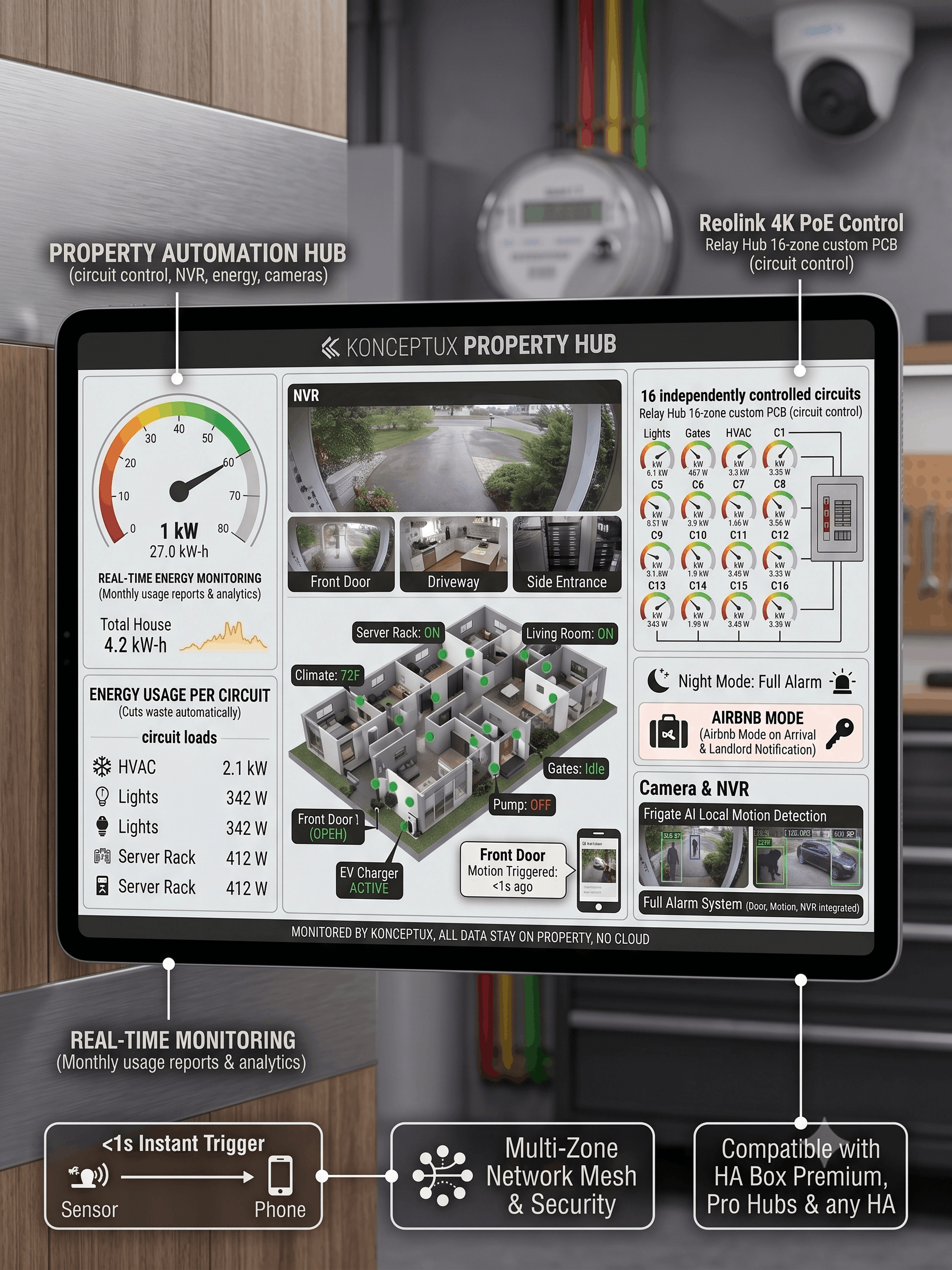

Dashboard Preview

Everything On
One Screen

A unified view of supported devices, sensors and automation controls. Dashboard features depend on connected equipment.

Konceptux Property Hub dashboard on a tablet
Getting Started

Plug In.
Automate.

Preconfigured to help you get started. Setup time varies with your network and devices.

01 / UNBOX

Connect Power & Ethernet

Plug in USB-C power and an Ethernet cable to your router. No assembly. Nothing to install.

02 / ACCESS

Open the Dashboard

Go to homeassistant.local:8123 from any browser on your network. Your dashboard loads immediately.

03 / PAIR

Add Your Devices

Put Zigbee sensors in pairing mode — follow the integration pairing process for supported devices.

04 / AUTOMATE

Build Your First Rule

Use the visual editor or load a pre-built template — motion lighting, door alerts, energy schedules.

Order Your Box

Ready to Build
Your Smart Home?

Choose Core or Premium and purchase through the Konceptux online shop. Contact us if you need help with compatibility or configuration.

Shop Core — $499 Shop Premium — $649 Ask a Question
Every order includes:
Fully assembled and bench-tested unit
HA OS pre-installed with your dashboard template
Zigbee coordinator configured and verified
Konceptux branded PETG enclosure
Onboarding options confirmed with your quotation
Support terms confirmed with your quotation
