Smart Automation Platform

Konceptux Smart
Automation Hub

Professional controller for smart homes, buildings, and automation systems.

The Konceptux Smart Automation Hub is a professional-grade controller designed for centralized smart home automation. Installed directly inside an electrical panel, it allows seamless control of lighting, motors, security devices, and sensors from a single intelligent platform.

Request a Quote Download Specifications
Front View
Local Automation DIN Rail PoE Ready HA Compatible
8–16
Relay Outputs
100%
Local Control
PoE
Powered
Watch It In Action

See the Build

A quick walkthrough of the hardware, wiring, and setup.

Video preview Video coming soon
Product Gallery

Every Angle Engineered

Konceptux Smart Automation Hub — Front View
Front View Front View

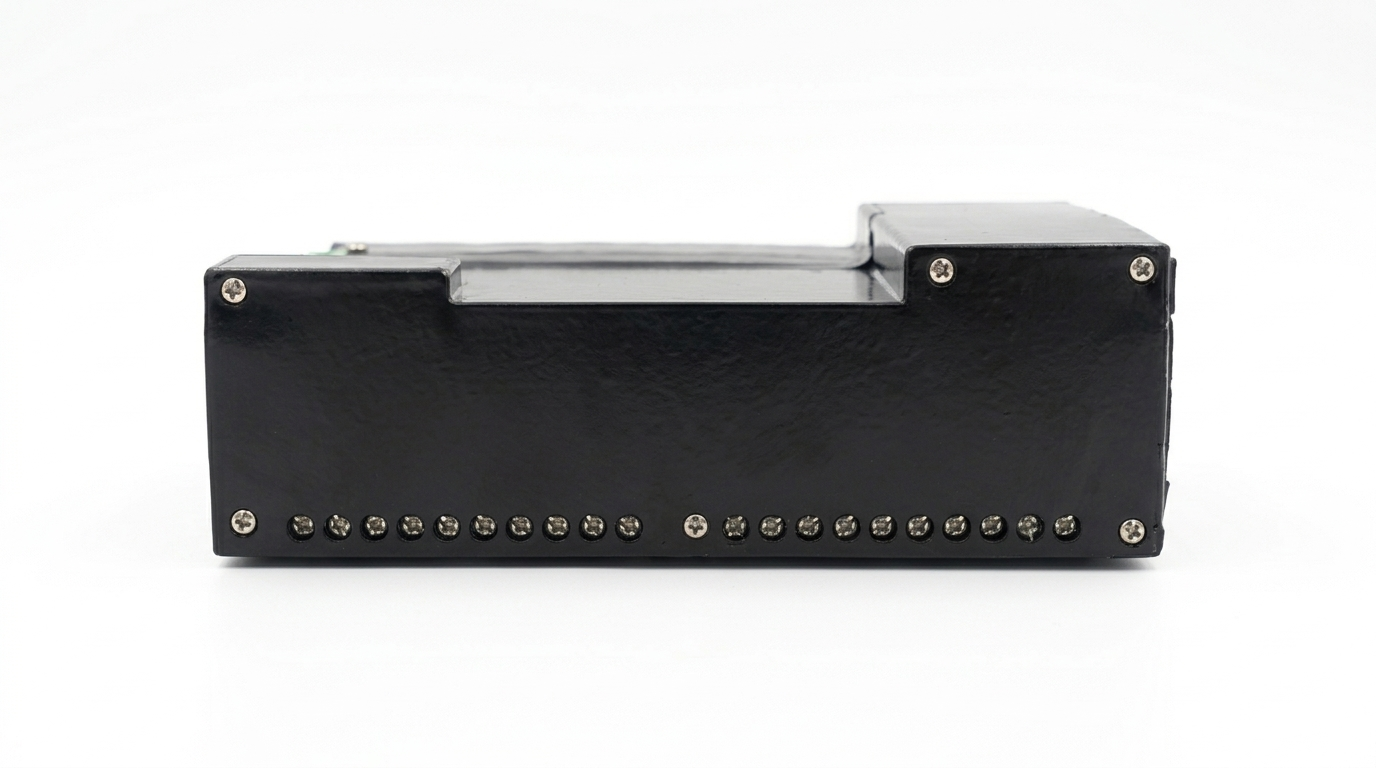

Terminal Connections Terminals

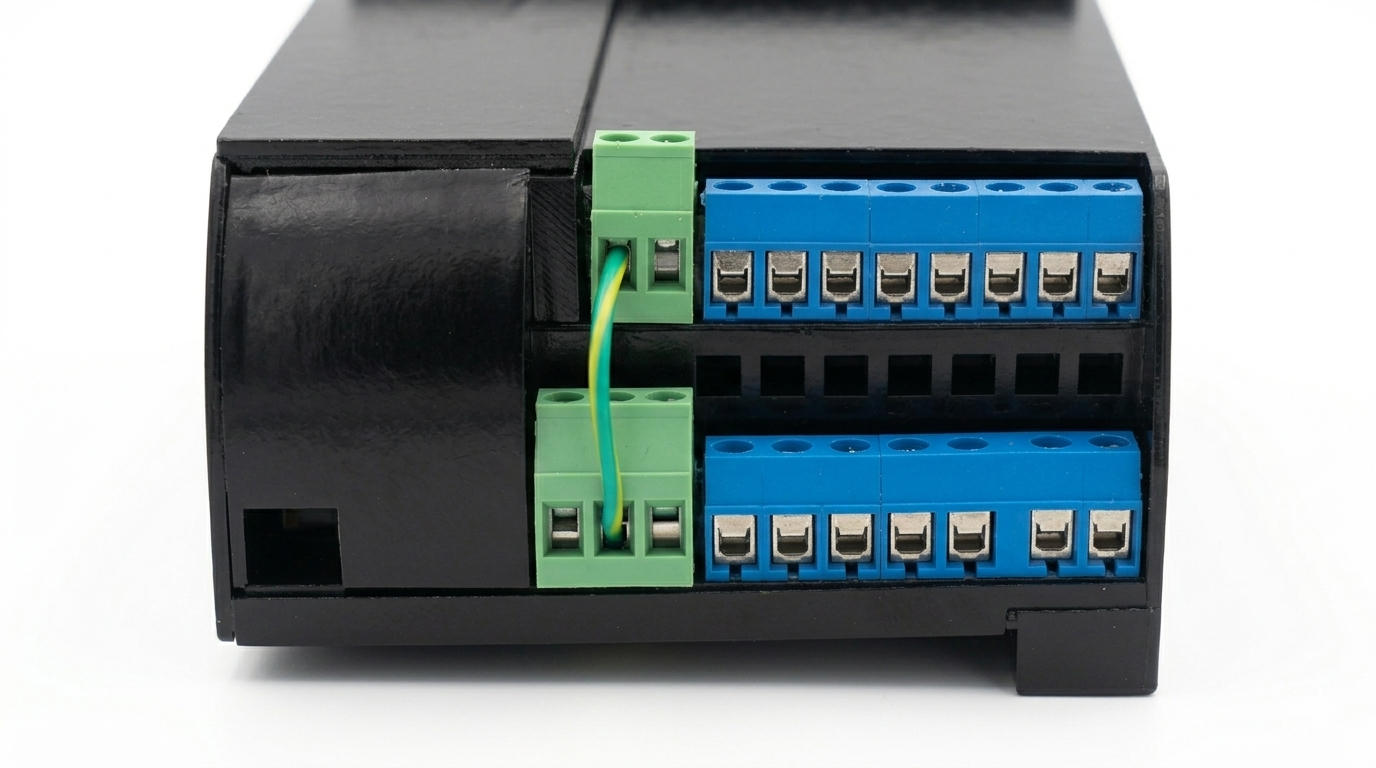

Ethernet / PoE Ports Ports

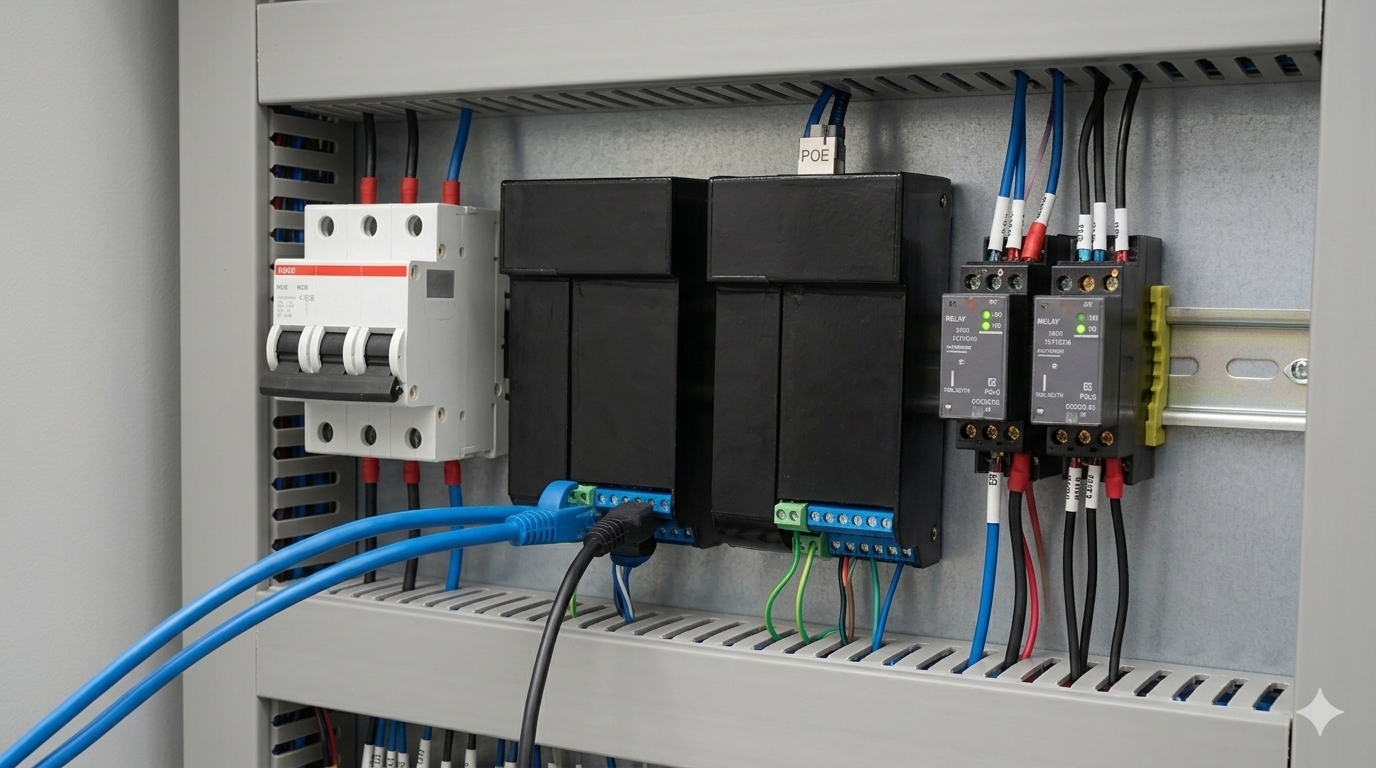

Panel Installation Installation
Core Capabilities

Engineered for
Professional Installations

Every feature is designed for reliability in real buildings — not demo conditions.

Local Automation

Runs entirely without internet dependency. Maximum reliability — automations execute even when your network is down.

Ethernet / PoE Connectivity

Stable wired communication. Powered directly over the network cable — no separate power supply needed in most setups.

Multi-Relay Control

Control 8 to 16 independent circuits — lighting, motors, pumps, gates, and appliances from a single hub.

Smart Home Integration

Native compatibility with Home Assistant, MQTT, and open protocols. Integrates with cameras, sensors, and third-party devices.

DIN Rail Installation

Designed for standard DIN rail inside electrical cabinets. Professional, clean installation alongside your existing breakers.

Real-Time Monitoring

Live status for every relay, input, and connected device. Alerts and automation rules trigger instantly on state changes.

Use Cases

What It Controls

Practical automation for every part of your property.

01 /

Smart Lighting

Turn lights on/off, automate schedules, or trigger scenes based on time, presence, or sensor input.

02 /

Gates & Garage

Control gate motors and garage doors remotely from your phone or automate based on time and access rules.

03 /

Energy Management

Automate high-consumption devices based on real-time energy data. Cut waste automatically.

04 /

Security Integration

Integrate motion sensors, door contacts, alarms, and RTSP cameras into a single unified system.

Technical Specs

Built to
Professional
Standards

Every component selected for reliability in permanent electrical installations. Designed for 24/7 operation in demanding environments.

CE Compliant DIN 35mm Rail MQTT / REST API Home Assistant Native
Power InputPoE (802.3af) / 12V DC
Network10/100 Ethernet
Relay Outputs8–16 channels (configurable)
Max Load / Relay10A @ 250VAC
Digital Inputs8 channels
Sensor InputsTemperature / Humidity / Contact
CommunicationMQTT, REST API, Home Assistant
InstallationDIN Rail 35mm
EnclosureIP20 industrial ABS
Operating Temp-10°C to +55°C
Firmware UpdatesOTA (over-the-air)
Local StorageFlash — no cloud required
Documentation

Download the
Paperwork

Everything needed to spec, install, and service this panel — no signup required.

IN-HUB16-1000 · 8 PAGES

Installation Instructions

Mains-voltage safety warnings, DIN-rail mounting, wiring, network configuration, dashboard integration, servicing, calibration, and full specs & dimensions.

Download PDF (IN) →
PDF · ~17 KB
PS-HUB16-1000 · 1 PAGE

Product Submittal

Product description, full specifications table, wiring/terminal reference, ordering information, and dimensions — for engineer or specifier approval.

Download PDF (PS) →
PDF · ~5 KB
PB-HUB16-1000 · 1 PAGE

Product Brochure

Marketing highlights, feature bullets, specs at a glance, and a panel callout diagram — built for sharing.

Download PDF (PB) →
PDF · ~4 KB

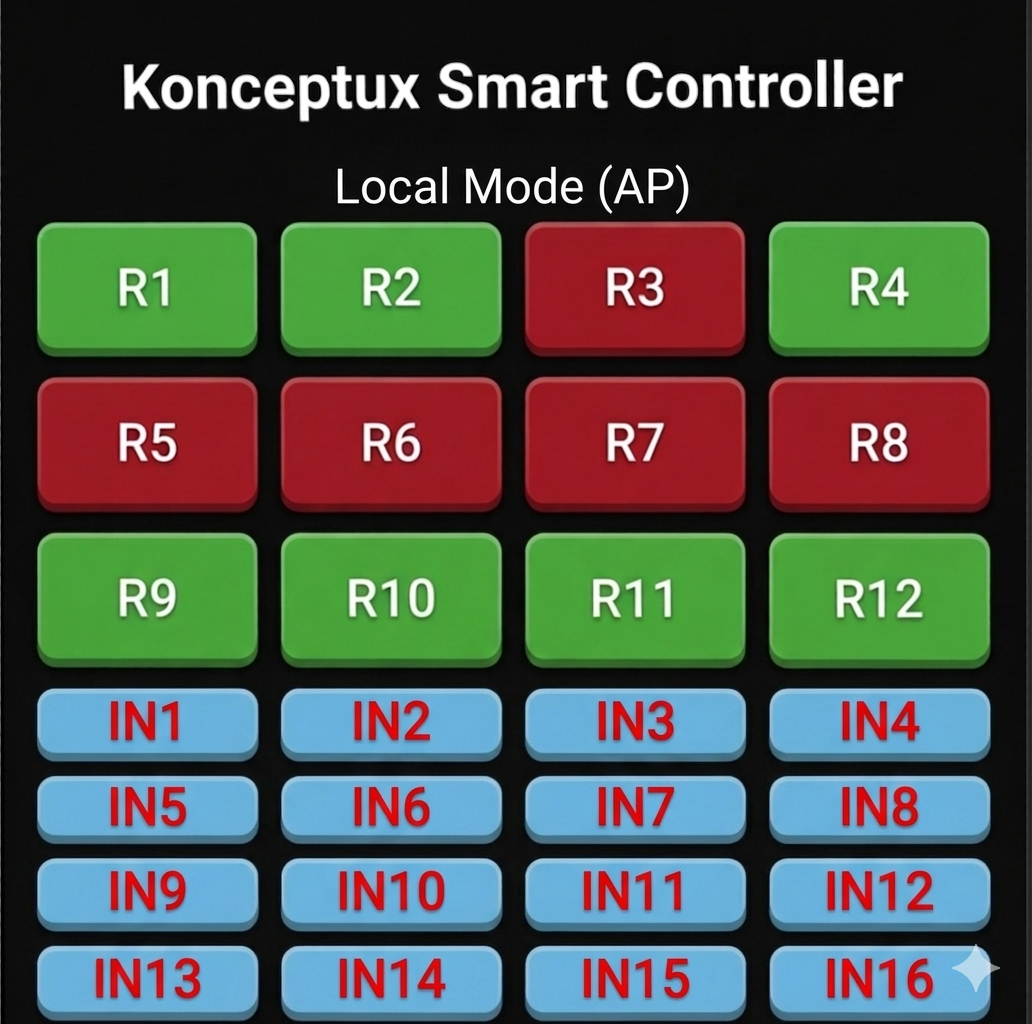

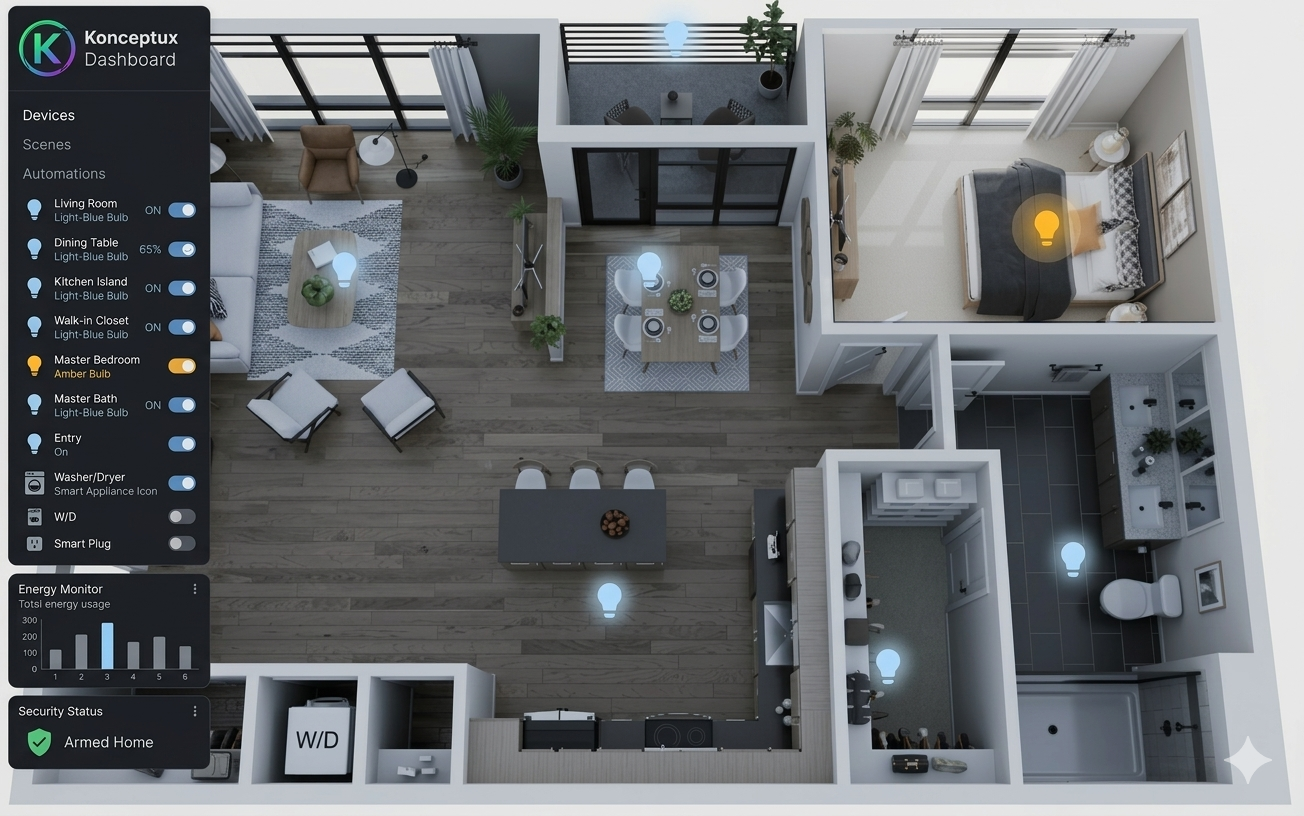

Dashboard Preview

Complete Control,
Any Screen

Control your entire home from a modern dashboard accessible from phone, tablet, or computer.

Front View
System Architecture

How It All
Connects

One hub. Every device. One dashboard. Simple to understand, professional to install.

💡 Lights
🚗 Gate Motor
📡 Sensors
📹 Cameras
wired connections
Konceptux Smart Automation Hub
ethernet
🌐 Local Network (PoE Switch)
dashboard
📱 Smart Dashboard — Phone · Tablet · Computer
Get Started

Upgrade Your Home
With Intelligent
Automation

Contact Konceptux to design a smart home solution tailored to your project. Every system is custom-engineered — not a generic off-the-shelf package.

Contact Us
The Konceptux Smart Home Platform includes:
Automation Hub — your custom control device
Dashboard software — Home Assistant configured by a professional
Mobile & tablet control — access from anywhere on your network
Sensors & relays — fully integrated and pre-configured
Camera integration — RTSP streams inside your dashboard
Ongoing support — remote monitoring retainer available
